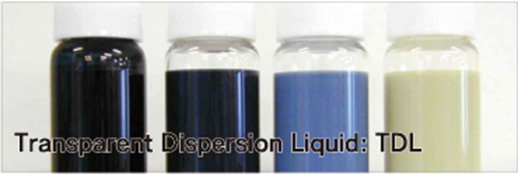

Transparent Dispersion Liquid

INTRODUCTION

Our unique technology made it possible to create Transparent Dispersion Liquid (TDL) from TCM which are dispersed uniformly in water without dispersant additives. With a water-based binder, TDL can be mixed easily, allowing easy production of water-based paints that provide high transparency and anti-electrostatic performance.

EXAMPLE OF USE

  • Antistatic
  • Materials for controlling electrical current
  • Heat ray shielding
Transparent Dispersion Liquid

FOR PRODUCTS

Transparent Conductive Dispersion

PHYSICAL AND CHEMICAL PROPERTIES

TDL-1 ※1 TDL-S ※1 SDL-2 ※2
Chemical composition SnO2 (Sb doped)
Dispersion liquid
SnO2 (Sb doped)
Dispersion liquid
SnO2
Dispersion liquid
Median particle size 90~135nm 50~85nm 90~200nm
Concentration 17~18% 17~18% 17~20%
pH 6~7.5 6~7.5 8~11
Specific gravity 1.16~1.17 1.16~1.17 1.1~1.3
Features High transparency
High electro-static dissipation
High dispersibility
High transparency
High electro-static dissipation
High dispersibility
Ultrahigh transparency
High electro-static dissipation
Notes Standard type
High transparency and anti-electrostatic performance can be achieved.
Small particle type
High transparency and anti-electrostatic performance can be achieved.
New product
Higher transparency can be achieved.

※ 1 Tin Oxide(TO)
※ 2 Phosphorus doped Tin Oxide(PTO)

Customize of powder andsolvent is also possible. Please contact us.
