(ATO・TO・PTO)Transparent Conductive Materials
Our Transparent Conductive Materials (TCM) consist of spherical primary particles with diameters shorter than the wavelength of visible ray. When a coating agent is made with an uniform dispersion of TCM, a transparent substrate can be attained with an anti-electrostatic performance. Made with tin oxide as a basic ingredient, TCM offers high performance against heat, chemicals, and severe weather.
■Transparent Electro-conductive Powder
| Type | ATO ※1 | TO ※2 | TO ※2 | PTO ※3 | |
|---|---|---|---|---|---|
| Products | T-1 | S-1 | S-2000 | SP-2 | |
| Chemical composition | SnO2 (Sb doped) | SnO2 | SnO2 | SnO2 (P doped) | |
| Particle shape | Spherical | Spherical | Spherical | Spherical | |
| Appearance | Blue | Yellowish white | Ash brown | Gray | |
| Volume Resistivity | <5Ω・cm | 1×105～6Ω・cm | 10-50Ω・cm | --- | |
| BET surface area | 70～85m2/g | 50～60m2/g | 45～60m2/g | --- | |
| Features | Transparency | ○ | ○ | ◎ | |
| Conductivity | ○ | ○ | ○ | ||
| Dispersibility | ○ | ○ | |||
| Environment | ○ | ○ | ○ | ||
| Notes | High reliablity |
Low environmental load High transparency |
Low environmental load High transparency |
New product Low environmental load Ultrahightransparency High conductivity |
|
※1 Antimony doped Tin Oxide(ATO)
※2 Tin Oxide(TO)
※3 Phosphorus doped Tin Oxide(PTO)

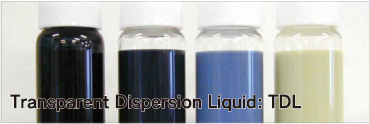

Our unique technology made it possible to create Transparent Dispersion Liquid (TDL) from TCM which are dispersed uniformly in water without dispersant additives. With a water-based binder, TDL can be mixed easily, allowing easy production of water-based paints that provide high transparency and anti-electrostatic performance.
■Transparent Dispersion Liquid
| TDL-1 ※1 | TDL-S ※1 | SDL-2 ※2 | |
|---|---|---|---|
| Chemical composition | SnO2 (Sb doped) Dispersion liquid |
SnO2 (Sb doped) Dispersion liquid |
SnO2 Dispersion liquid |
| Median particle size | 90～135nm | 50～85nm | 90～200nm |
| Concentration | 17～18% | 17～18% | 17～20% |
| pH | 6～7.5 | 6～7.5 | 8～11 |
| Specific gravity | 1.16～1.17 | 1.16～1.17 | 1.1～1.3 |
| Features |
High transparency High electro-static dissipation High dispersibility |
High transparency High electro-static dissipation High dispersibility |
Ultrahigh transparency High electro-static dissipation |
| Notes |
Standard type High transparency and anti-electrostatic performance can be achieved. |
Small particle type High transparency and anti-electrostatic performance can be achieved. |
New product Higher transparency can be achieved. |
The data mentioned above are not intended to guarantee quality in an example of a representative result.
| Industrial Applications |
●Antistatic ●Electromagnetic shielding materials ●Near IR filters ●Heat ray filter |
|---|---|
|
●Heat ray shielding ●Materials for controlling electrical current ●Refractive materials |
