Black Titanium Oxide
INTRODUCTION
Black Titanium Oxide is a new material in the category of titanium oxide type pigment. Its unique properties deliver a variety of physicochemical performance. We developed Black Titanium Oxide by controlling oxygen content. Black Titanium Oxide is a pigment with small particle diameter, high hiding power, nonmagnetic properties, and high dispersibility in water and also in organic solvents. We provide two types of pigments: Type M, characterized by its conductivity (adjusting electric charge, etc.) and Type S, characterized by its superior hiding power. We offer an exceptional inorganic pigment of a bluish-black color with an L value of approximately 11 and a specific surface area from 10 to 25m2/g. The average Type S primary particle size is around 60nm (0.06μm), while the average Type M primary particle size is in the range of 80 to 100nm.
EXAMPLE OF USE
- Light shielding and black matrix (for example liquid crystal displays)
- Copy machine component materials (charging rolls, electrical charge adjustment fillers)
- Cosmetics
FOR PRODUCTS
PHYSICAL AND CHEMICAL PROPERTIES
| Products | 13M | 13M-C | 13M-T | 12S | UF-8 | ||
|---|---|---|---|---|---|---|---|
| Characteristics | Standard | light-shielding | High light-shielding | Strong Tinting Power | fine particle | ||
| Materials Properties (Central value) | L value | – | 12.5 | 10.9 | 9.5 | 11.4 | 9.0 |
| Specific Surface area | m2/g | 14.4 | 18.5 | 20.6 | 22.5 | 77.0 | |
| Volume Resistivity | Ω・cm | 2.5 | 2.0 | 1.0 | – | 3.0 | |
DETAILS INTRODUCTION
optical properties

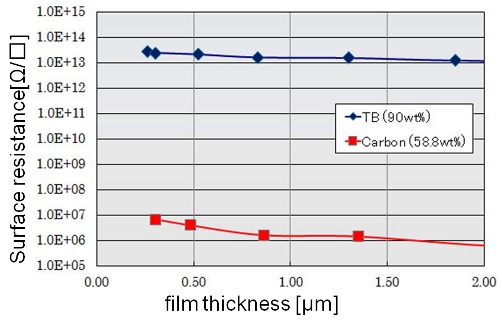

Antistatic properties
